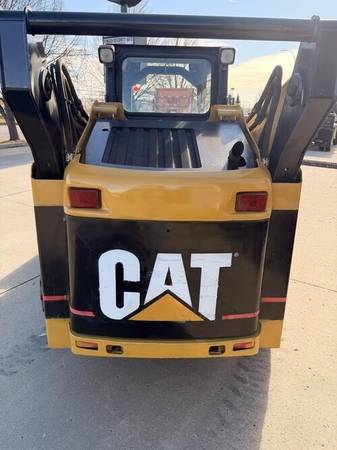

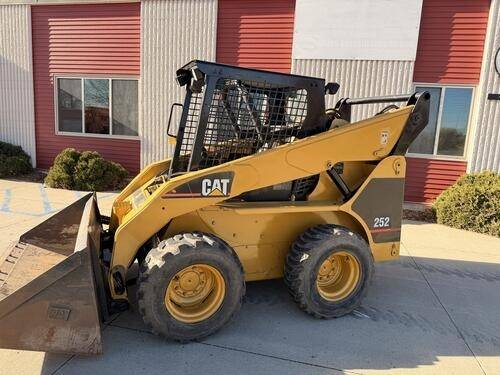

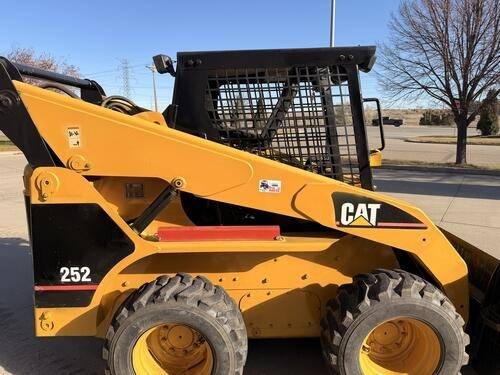

CATEPILLAR 252B Skidsteer with bucket - $23,995
QR Code Link to This Post
Only 2309 Hrs
Open rops
Bucket postioning
Power bob-tach

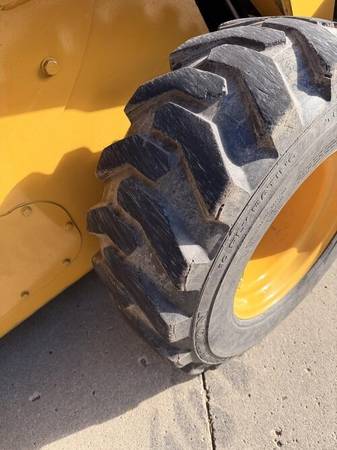

Tires are 60%
Pins and bushings are titght
Super clean well maintained machine

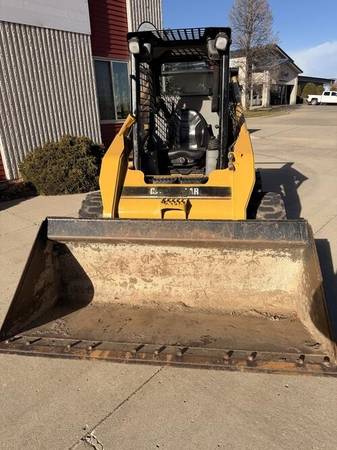

Comes with bucket
2008 Model
FINANCING AVAILABLE AS WELL !!!!!!!!!
Lucas @ Ag Direct
Call 605-222-0205
United Lease & Finance, Inc
Call Roger Johnson 701-232-1827
For a free Consultation Today In House as well.
Pro Kartz now offers skid steer attachments!
10% Off any attachments with purchase of Skidsteer
Snow Buckets on Hand !!!!!!
We buy used skidsteers as well, Many on hand
H&H Fabrication Authorized Dealer that carries a wide variety of products
Seasoned Ready
Delivery options as well
Dimensions
Bucket Pin Height - Carry Position 10 in (24 cm)
Bucket Pin Height - Maximum Lift 11 ft (3 m)
Bumper Overhang - Rear Axle 41 in (104 cm)
Clearance at Max Lift and Dump 8 ft (2 m)
Clearance at Maximum Lift and Dump 98 in (249 cm)
Ground Clearance 9 in (23 cm)
Length - With Bucket on Ground 142 in (362 cm)
Length - Without Bucket 114 in (290 cm)
Length w/o Bucket 10 ft (3 m)
Length with Bucket 12 ft (4 m)
Maximum Overall Height 161 in (409 cm)
Reach - Maximum Lift/Dump 33 in (83 cm)
Reach at Max Lift and Dump 31 in (78 cm)
Turning Radius from Center - inc bucket 89 in (227 cm)
Vehicle Width over Tires 72 in (183 cm)
Wheel Base 4 ft (1 m)
Wheelbase 4 ft (1 m)
Width Over Tires 6 ft (2 m)

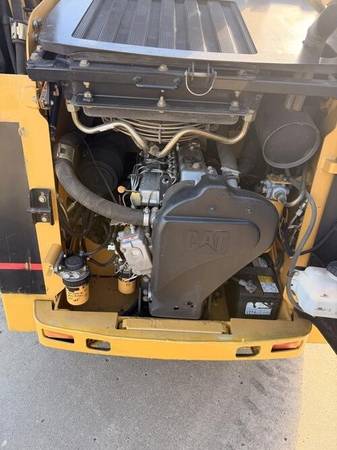

Engine
Bore 4 in (10 cm)
Displacement 183 cu in (2,999 cu cm)
Engine Make Caterpillar
Engine Model Cat 3034C
Gross Power 59 hp (44 kw)
Net Flywheel Power 59 hp (44 kw)
Number of Cylinders 4
Power Measured @ 2600 rpm
Stroke 4 in (10 cm)
Hydraulic System
Hydraulic Flow Standard flow
Loader Hydraulic Flow 22 gpm (83 lpm)
Loader Hydraulic Pressure 3300 psi
Pump Flow Capacity 22 gpm (83 lpm)
Loader
Bucket Capacity 1 cu yd (0 cu m)
Operating Load Rating 2,250 lbs (1,021 kg)
Tipping Angle 4733.3 degrees
Operating Specifications
Breakout Force - Lift Cylinder 5,020 lbs (2,277 kg)
Breakout Force - Tilt Cylinder 5,212 lbs (2,364 kg)
Fuel Capacity 24 gal (90 l)
Hydraulic System Fluid Capacity 14 gal (53 l)
Max Speed 8 mph (12 kph)
Operating Speed 8 mph (12 kph)
Operational Weight 3,535 lbs (1,603 kg)
Rated Operating Capacity 2,250 lbs (1,021 kg)
Rated Operating Capacity with Optional Counterweight 2,300 lbs (1,043 kg)
Tipping Load 4,500 lbs (2,041 kg)
Service Refill Capacities
Chain Box - Each Side 2 gal (8 l)
Cooling System 3 gal (10 l)
Engine Crankcase 2 gal (7 l)
Fuel Tank 24 gal (90 l)
Hydraulic System 14 gal (53 l)
Hydraulic Tank 9 gal (35 l)
Weights
Operating Weight 7,615 lbs (3,454 kg)
We take Trades on skidsteers
Call or stop by today for more information
Available at:
Pro Kartz / Rides auto sales
1200 North Star Dr,
Bismarck, ND 58501
Wade 701-220-8063
Prokartznd.com IF WE DONT HAVE IT, CALL TO ORDER Call or stop by today for more information 1100 Industrial Drive, Suite 40 Bismarck, ND 58501 Wade 701-220-8063
